HMS PINAFORE

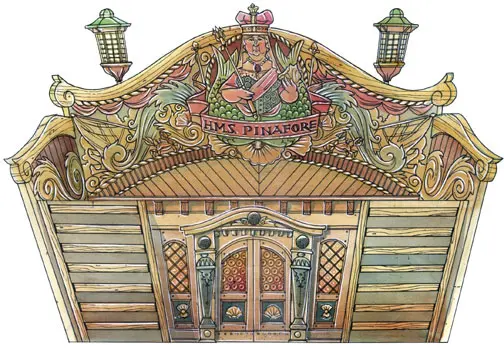

This beautiful, majestic set was designed by Don Carson, a senior designer for Walt Disney Studios. Crafted with careful attention to nautical details, it looks remarkably seaworthy!

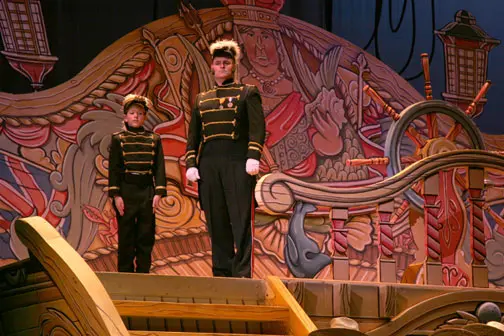

“Ahoy, you landlubbers. The lads under Capt. Corcoran’s command are scurrying about the decks of a brand new HMS Pinafore.

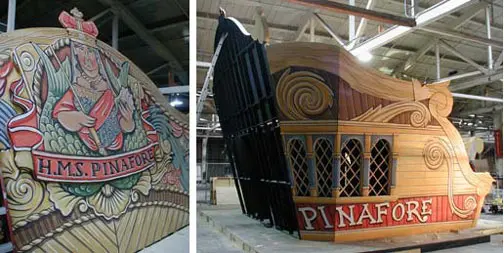

“And what a beauty she is, too – long, sleek and massive. Queen Victoria peers down from the ornate poop deck. Lots of doors and stairs. Rigging so tall the tops disappear. Just what set designer Don Carson intended to pop the eyes of patrons attending the Eugene Opera this Friday and next Sunday for its production of Gilbert and Sullivan’s popular comic opera.
“ ‘It’s a big jungle gym for the director to play with that has the whimsy and tongue-in-cheek nature of Gilbert and Sullivan,’ says Carson, a Disney designer who has lived in Eugene since 1995.”
— Fred Crafts, The Register-Guard, March 7, 2004
Images and set rental information are below. For more information, contact us.
HMS Pinafore Gallery
Set Rental Information
FEES | |
Set Rental Fee (up to three [3] performances) | $13,000 |
Additional Performances (each) | $1,500 |
Security Deposit (refundable upon return of scenery) | $2,000 |
Designer Royalty (payable to designer) | $1,000 |
Technical Supervisor (per diem/rate) | $200/day |
Technical Supervisor (housing and travel) | varies by job |
Load In/Load Out (paid upon load in) | $1,800 |
Insurance Required | $500,000 |
PRODUCTION INFORMATION | |
Set Designer | Don Carson |
Technical Director | Alex Fontain |
Year Built | 2004 |
Built by | Alex Fontain |
TRANSPORTATION | |
Number of Trucks | One 53’ truck |
CREW REQUIREMENTS | |
LOAD IN/LOAD OUT (8 hours) | 1 Carp 1 Loader 8 Grips |
SHOW | 1 Carp 2 Flymen |
ORIGINAL THEATRE INFORMATION | ||||
In Eugene, the production was presented at the Hult Center for the Performing Arts. | ||||
Wall to wall width | 125’ | Depth of apron | 10’ | |
Width within stagehouse | 100’ | Depth (PL to back wall): | 45’ | |
Wing width SR | 20’ | Depth (PL to last line) | 45’ | |
Wing width SL | 20’ | Height of grid | 71’ | |
# of linesets | 75 | Height of proscenium | 35’ | |
Size of loading door | 12’ x 16.5’ | Width of proscenium | 58’ |
SET TECHNICAL INFORMATION | |
Minimum width | 100’ |
Minimum depth | 45’ |
Total # of line sets | 93 |
Height of tallest drop | 24′ (mast) |
Furthest upstage flying piece | n/a |
Weight of heaviest flyer | 250 lb. |
Dimensions of largest flying piece | 24′ sail (drop) |
Dimensions of largest soft piece | 24′ sail (drop) |
Dimensions of largest standing piece | 24’ (mast) |
PROPERTIES INFORMATION | |
Availability | Not available |
COSTUMES | |
Owner | Eugene Opera |
Availability | Not available |
PROJECTIONS/SPECIAL EFFECTS | |
Supertitles | Available |
Special projections | None |
For more information, contact us.
